Kod produktu: P.A3.1

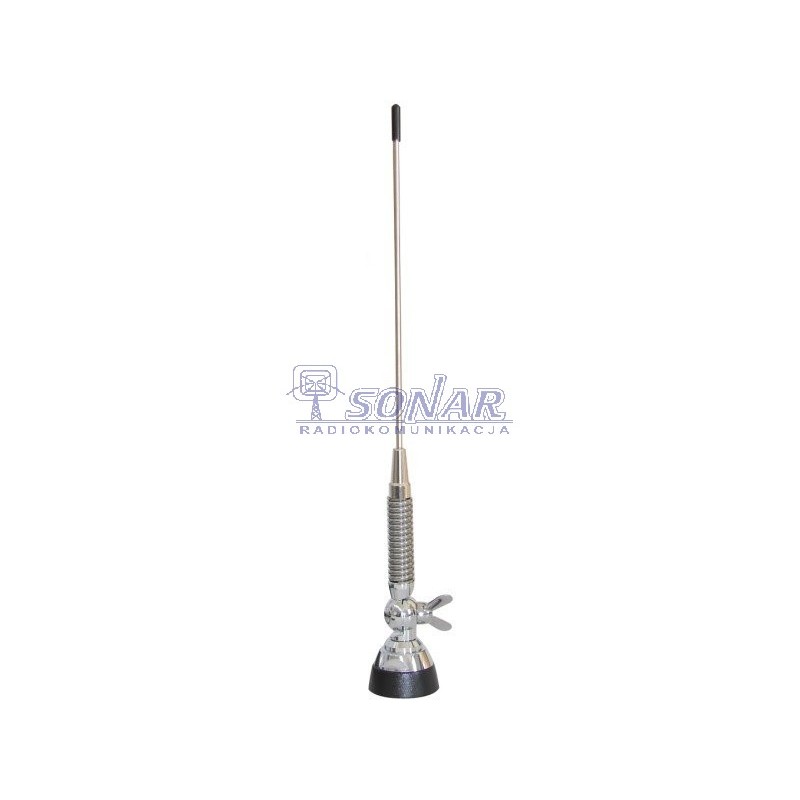

MGA 55-550/S Antena SIRIO

Producent: Sirio

Opis produktu

MGA 55-550/S Antena
Electrical Data
- Type: 1/4 λ
- Fequency Range:
MGA 55-550: tunable 55...550 MHz
- Impedance: 50Ω
- Radiation (H-plane): 360° omnidirectional
- Polarization: linear vertical
- Gain: 0 dB ref. to a λ /4 whip
- Bandwidth @ SWR ≤ 2: see diagram
- SWR @ res. freq.: see diagram
- Max. Power (CW) @ 30°C: 100 Watts
- Standard mount: "SL"
- Cable Length / Type: 5 m / RG 58
- Alternative mount: "S" (55...300 MHz only)

Mechanical Data
- Materials: Stainless Steel 17/7 PH, Nylon, Chromed Brass
- Height (approx.):
MGA 55-550: 1400 mm
- Weight (approx.): 420 gr
- Mounting Hole: Ø 19 mm
