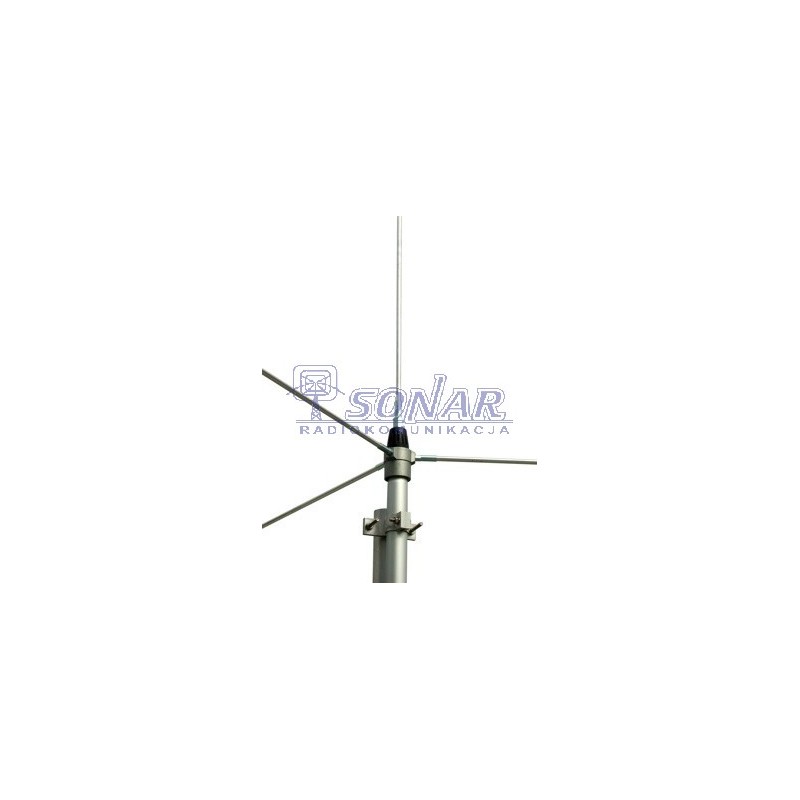

GP-6E 2*5/8 140-174Mhz. ANTENA BAZOWA SIRIO

Zobacz większe

Kod produktu: P.G2

GP-6E 2*5/8 140-174Mhz. ANTENA BAZOWA SIRIO

Producent: Sirio

Cena brutto: 260,00 zł
Cena netto: 211,38 zł

Ilość sztuk:

Opis produktu

GP-6E 2*5/8 140-174Mhz. Antena Bazowa

Electrical Data
-	Type: 2x5/8λ ground plane colinear
-	Frequency range: tunable 140...175 MHz
-	Impedance: 50Ω
-	Radiation (H-plane): 360° omnidirectional
-	Radiation (E-plane): beamwidth @ -3 dB = 30°
-	Radiation angle: 3.6°
-	Polarization: linear vertical
-	Gain: 3.8 dBd - 5.95 dBi
-	Bandwidth @ SWR ≤2: see diagram
-	SWR @ res. freq.: see diagram
-	Max. Power (CW) @ 30°C: 200 Watts
-	Grounding protection: All metal part are DC-grounded, the inner conductor shows a DC-short
-	Connector: UHF-female, gold plated central pin

Mechanical Data
-	Materials: Aluminium, Brass, Nylon
-	Wind load / resistance: 46 N @ 150 Km/h / 120 Km/h
-	Wind surface: 0.04 m²
-	Height (approx.): 3060 mm
-	Weight (approx.): 750 gr
-	Radial length (approx.): 530 mm
-	Mounting mast: Ø 25-30 mm
