Kod produktu: P.B8.1

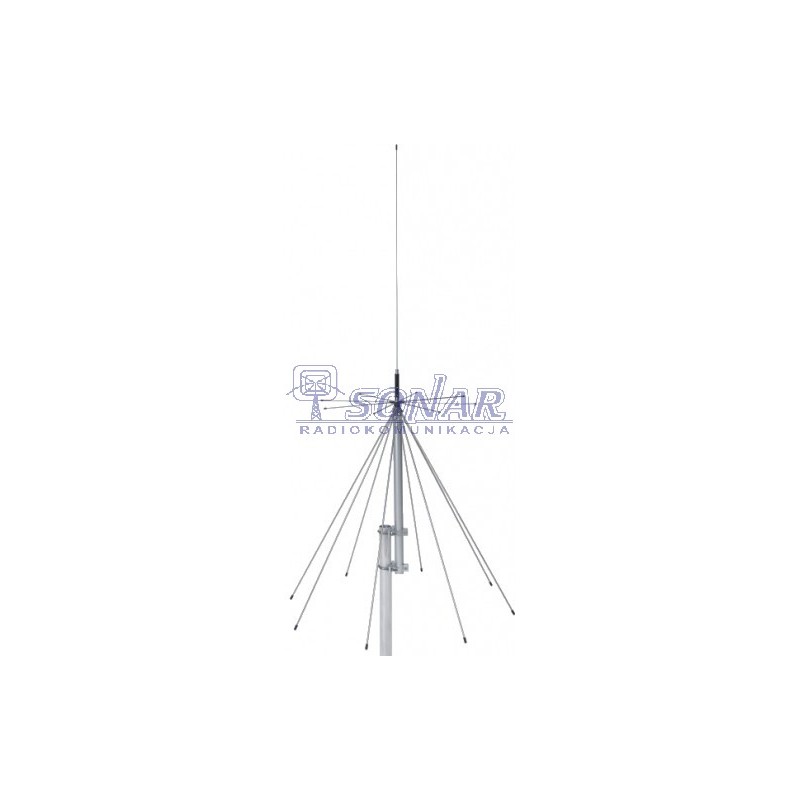

SD-1300 UHF Antena Bazowa SIRIO

Producent: Sirio

Opis produktu

SD-1300/UHF Antena Bazowa

UHF ANTENA BAZOWA
Electrical Data
- Type: discone
- Frequency range:
RX band: 25-1300 MHz
TX band (@ SWR ≤2): 49.5-50.5, 120-180, 215-300, 415-465,
610-650, 710-1000, 1130-1300 MHz
- Impedance: 50Ω
- Radiation (H-plane): 360° omnidirectional
- Radiation (E-plane): frequency dependent, see the pattern
- Radiation angle: frequency dependent, see the pattern
- Polarization: linear vertical
- Gain: 0 dBd - 2.15 dBi @ lowest frequency
- Max. power (CW) @ 30°C:
VHF: 300 Watts
UHF: 200 Watts
- Connector:
SD 1300 U: UHF-female, gold plated central pin
SD 1300 N: N-female, gold plated central pin

Mechanical Data
- Materials: Stainless Steel, Chromed Brass, Nylon
- Wind load / resistance: 66 N @ 150 Km/h / 130 Km/h
- Wind surface: 0.06 m²
- Height (approx.): 1600 mm
- Weight (approx.): 1140 gr
- Cone Radial length (approx.): 810 mm
- Mounting mast: Ø 25-54 mm
