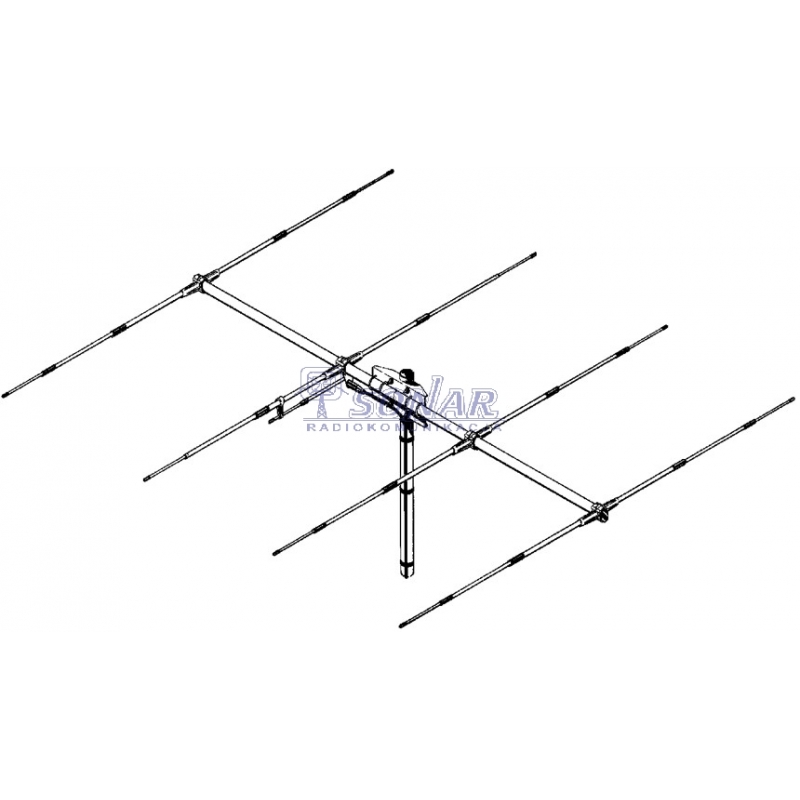

SY-27 4 El Antena Kierunkowa SIRIO View larger

B.C6

SY-27 4 El Antena Kierunkowa SIRIO

Producent: Sirio

Product description



Type:
  SY 27-3: 3 element Yagi antenna
  SY 27-4: 4 element Yagi antenna

-

Frequency range:
  SY 27-3: 26.1-27.7 MHz @ SWR ≤ 2
  SY 27-4: 26.9-27.5 MHz @ SWR ≤ 2

-

Impedance: 50Ω

-

Radiation (H-plane): directional

-

Polarization: linear horizontal

-

Gain:
  SY 27-3: 8.5 dBd, 10.65 dBi
  SY 27-4: 11 dBd, 13.15 dBi

-

Bandwidth @ SWR ≤ 2:
  SY 27-3: ≥ 1800 KHz
  SY 27-4: ≥ 600 KHz

-

SWR @ res. freq.: ≤ 1.2

-

Max. power:
 1000 Watts (CW) continuous
 3000 Watts (CW) short time

-

Feed system / position: Gamma match / center

-

Connector: UHF-female





Mechanical Data

-

Materials: Aluminium, Steel, Nylon

-

Wind load:
  SY 27-3: 86 N at 150 Km/h
  SY 27-4: 80 N at 150 Km/h

-

Wind resistance: 120 Km/h

-

Wind surface: 0.07 m²

-

Dimensions (approx.):
  SY 27-3: 5740x2710x100 mm
  SY 27-4: 5725x4030x100 mm

-

Boom length / diameter:
  SY 27-3: 2710 mm / 33 mm
  SY 27-4: 4030 mm / 33 mm

-

Max. element length (approx.):
  SY 27-3: 5740 mm
  SY 27-4: 5725 mm

-

Turning radius (approx.):
  SY 27-3: 3200 mm
  SY 27-4: 3600 mm

-

Weight (approx.):
  SY 27-3: 4700 gr
  SY 27-4: 6100 gr

-

Mounting mast: Ø 35-50 mm
